A Beginner's Guide to Smartphone IC Reballing

Smartphones are delicate yet powerful devices that pack a lot of technology into a small frame. Among the most critical components of a smartphone are its Integrated Circuits (ICs). These tiny chips are responsible for powering various functions, such as processing, memory, and communication. However, over time or due to physical damage, ICs can develop faults, causing the device to malfunction. This is where IC reballing comes into play—a skill that is essential for anyone looking to specialize in advanced smartphone repairs.

In this beginner's guide, we’ll break down the process of IC reballing, explain why it’s necessary, and provide step-by-step instructions to get you started.

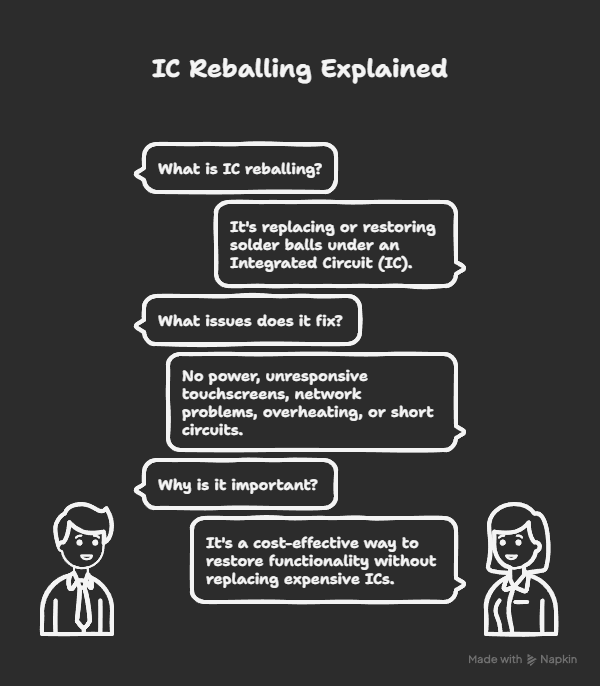

What is IC Reballing?

IC reballing is the process of replacing or restoring the tiny solder balls (connections) underneath an Integrated Circuit (IC). These solder balls serve as electrical connections between the IC and the smartphone’s motherboard. Over time, these connections can become weak, damaged, or misaligned, leading to issues such as:

• No power or boot-up issues.

• Unresponsive touchscreens.

• Network connectivity problems.

• Overheating or short circuits.

Reballing involves removing the IC, cleaning off the old solder, and replacing it with fresh solder balls to restore the connection. This process requires precision, patience, and the right tools.

Why is IC Reballing Necessary?

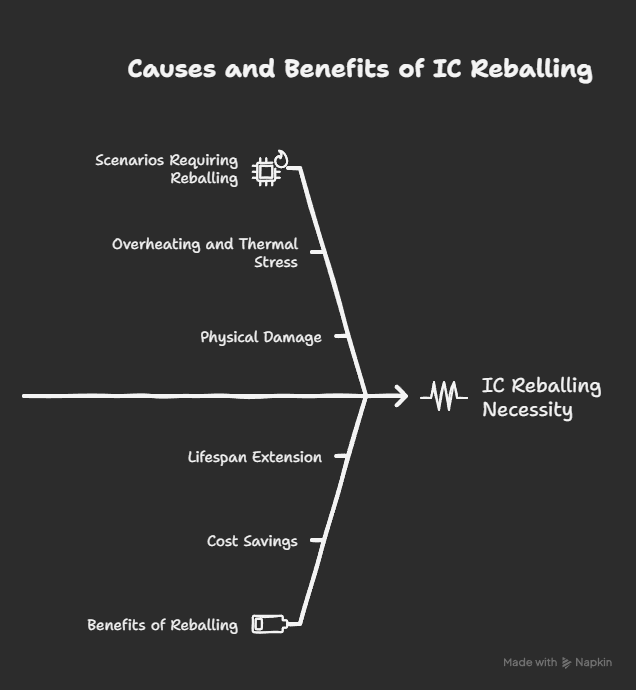

IC reballing is performed when an IC is not functioning correctly, but the chip itself is still operational. Instead of replacing the entire IC, reballing is often a cost-effective solution that restores the component to working order. Here are some common scenarios where IC reballing is necessary:

1. Overheating and Thermal Stress: Excessive heat can cause solder balls to crack or weaken, breaking the connection between the IC and motherboard.

2. Physical Damage: Dropping a phone can dislodge or damage the IC connections.

3. Moisture Damage: Water exposure can corrode the solder balls, leading to poor conductivity.

4. Manufacturing Defects: In some cases, poor soldering during manufacturing can result in faulty connections, requiring reballing.

By performing IC reballing, technicians can often save the device without replacing costly components, making it a highly valuable skill in the repair industry.

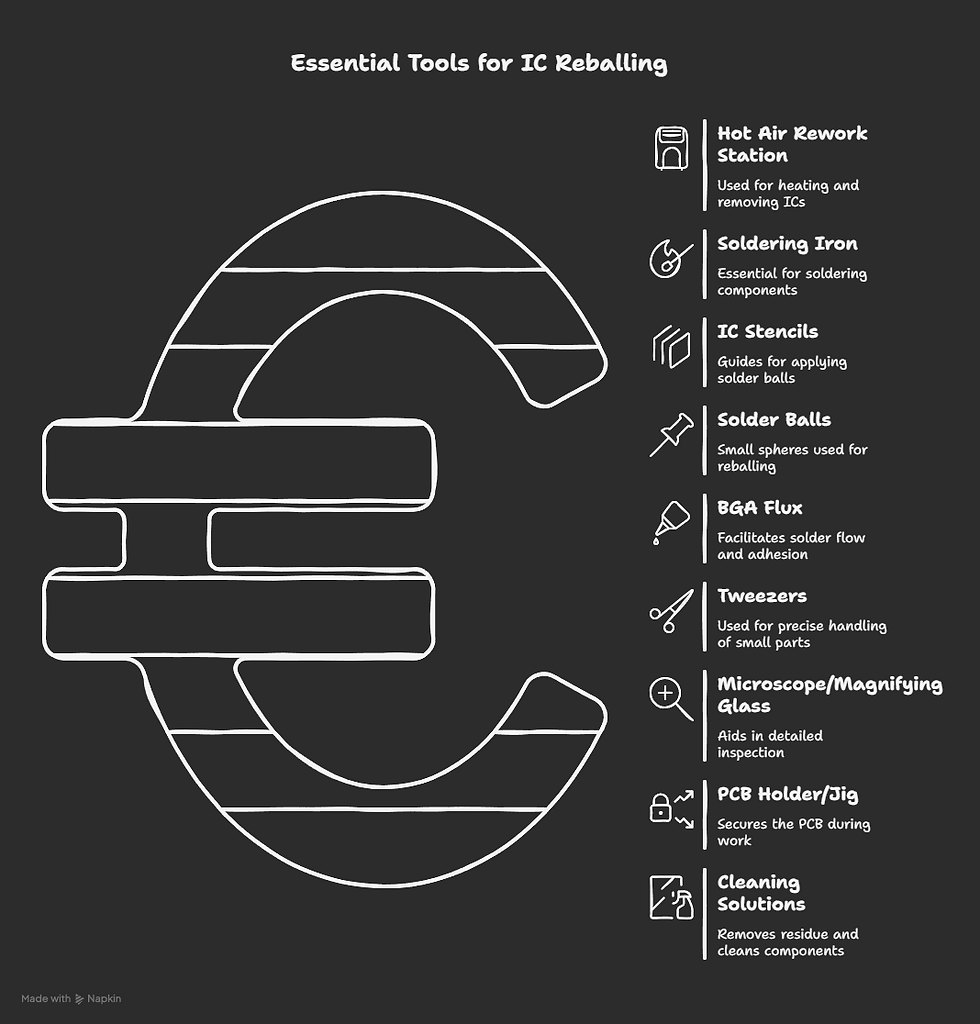

Tools and Equipment Needed for IC Reballing

Before you begin, ensure you have the proper tools and materials for the job. Here’s a list of what you’ll need:

Essential Tools:

1. Hot Air Rework Station: Used to heat and remove the IC from the motherboard safely.

2. Soldering Iron: For cleaning and re-soldering the IC and motherboard.

3. IC Stencils: A metal template that helps align and place new solder balls onto the IC.

4. Solder Balls: Tiny solder spheres, typically available in sizes such as 0.3mm, 0.4mm, or 0.5mm (depending on the IC).

5. BGA Flux: A paste that helps solder balls adhere to the IC during reballing.

6. Tweezers: For handling small components with precision.

7. Microscope or Magnifying Glass: To inspect the IC and ensure proper alignment during reballing.

8. PCB Holder or Jig: To hold the motherboard or IC securely while working.

9. Cleaning Solutions: Isopropyl alcohol (IPA) for cleaning the IC and motherboard.

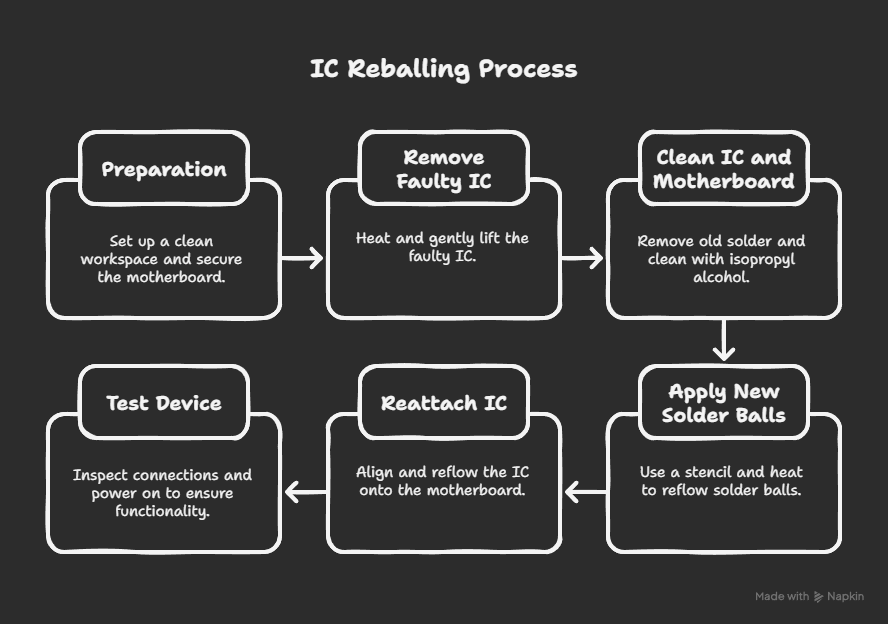

Step-by-Step Guide to IC Reballing

Follow these steps to perform IC reballing effectively:

Step 1: Preparation

1. Set Up Your Workspace: Ensure your workspace is clean, well-lit, and free of dust. You’ll need a steady hand and complete focus.

2. Secure the Motherboard: Use a PCB holder or jig to hold the motherboard firmly in place.

Step 2: Remove the Faulty IC

1. Heat the IC: Use a hot air rework station to apply heat evenly to the IC. The temperature typically ranges between 250–300°C, depending on the solder type.

2. Pro Tip: Avoid overheating nearby components; use thermal tape or shielding to protect sensitive areas.

3. Remove the IC: Once the solder melts, gently lift the IC using tweezers. Be careful not to damage surrounding components.

Step 3: Clean the IC and Motherboard

1. Clean the Motherboard Pads: Use a soldering iron and desoldering wick to remove old solder from the motherboard. Clean the area with isopropyl alcohol to remove residual flux.

2. Clean the IC: Similarly, clean the IC using a soldering iron and desoldering wick. Ensure all old solder is removed, leaving a flat surface.

Step 4: Apply New Solder Balls

1. Place the IC in the Stencil: Align the IC under the stencil so that the pads match the holes in the stencil.

2. Apply Flux: Spread a thin layer of BGA flux over the IC pads. This ensures the solder balls adhere properly.

3. Add Solder Balls: Sprinkle solder balls over the stencil, ensuring each hole is filled. Shake off any excess solder balls.

4. Heat to Reflow: Use the hot air rework station to heat the IC until the solder balls melt and adhere to the IC. Allow it to cool before removing the stencil.

Step 5: Reattach the IC to the Motherboard

1. Apply Flux to the Motherboard: Spread a thin layer of flux onto the cleaned motherboard pads.

2. Align the IC: Carefully place the reballed IC onto the motherboard, ensuring the solder balls align with the motherboard pads.

3. Reflow the IC: Use the hot air rework station to heat the IC and motherboard until the solder balls melt and form solid connections. Allow it to cool completely.

Step 6: Test the Device

1. Inspect the Connections: Use a microscope or magnifying glass to check for proper alignment and solid connections.

2. Power On the Device: Reassemble the smartphone and power it on to ensure the IC is functioning correctly.

Tips for Successful IC Reballing

• Practice on Scrap Boards: If you’re a beginner, practice on old or non-functional motherboards to build your confidence and skills.

• Use the Right Solder Ball Size: Always use the correct size of solder balls as specified for the IC you’re working on.

• Work in a Dust-Free Environment: Dust particles can affect the quality of soldering and cause shorts or weak connections.

• Be Patient: IC reballing requires precision and attention to detail. Rushing the process can lead to errors.

Common Mistakes to Avoid

1. Overheating the IC: Excessive heat can damage the IC or surrounding components. Always monitor the temperature closely.

2. Misalignment: Improper alignment of the IC can lead to poor connections, causing the device to malfunction.

3. Skipping Cleaning: Not cleaning the IC and motherboard thoroughly can result in weak solder joints.

Final Thoughts

IC reballing is a highly specialized skill that can significantly enhance your smartphone repair expertise. While it may seem intimidating at first, with practice and the right tools, you can master this technique and offer advanced repair services to your customers. As smartphones continue to evolve, the demand for skilled technicians capable of IC reballing will only grow, making it a valuable skill for anyone in the repair industry.

Ready to get started? Grab your tools, practice on scrap boards, and take your repair skills to the next level! If you found this guide helpful, share it with fellow technicians or leave a comment below with your thoughts and questions.
